Full Description

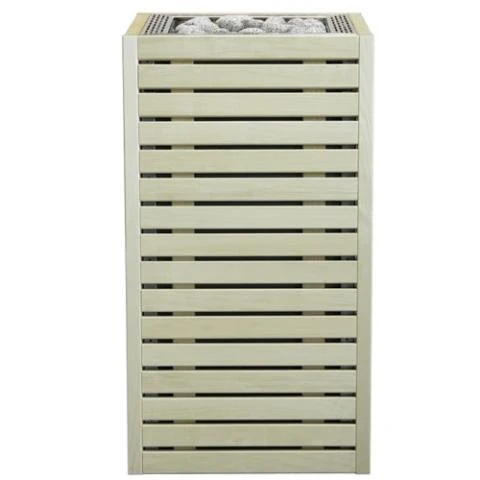

The HUUM CORE Sauna Heater offers flexibility and style, featuring premium Aspen wood exterior panels for an upscale, modern appearance. This elegant and powerful unit is engineered for sauna rooms up to 566 cubic feet (CF).



Features

• 240V/1PH operation
• Customizable design with choice of different inlay finishes
• Wood panels add a finished look to the heater and help prevent burn injuries
• Built to match the sauna room aesthetic
• Can be completely embedded into a sauna bench
• Direct contact between stones and heating elements
• Stainless steel, industrial quality heating elements
• Designed, engineered, and made in Estonia
• Works with UKU Controls (sold separately)
• 66 pound stone capacity (required 2 boxes sold separately)
• Dimensions: 12.2"W (31 cm) x 12.2"D (31 cm)  x 32.7"H (83 cm)
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)



Includes

• Sauna Heater
• Adjustable Legs (4)
• Unfinished Metal Shields (4)
• Cover Strips (4)
• Wood Panels (4)
• Cover Strip Fastening Screws
• Wood Panel Fastening Screws
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)



Specifications

Heater
Power rating	9 kW
Steam room min	8 m³
Steam room max	13 m³
Holding capacity of sauna rocks	30 kg
Weight	19 kg
Height	830 mm
Width	385 mm
Depth	385 mm
Connection
Fuse	16 A
Supply voltage, 3-phase	3/N~400 V
Power cable (N x mm²)	5 x 1.5



Safety Clearances

A - 40mm | B - 465 | H - 830mm



Manuals

Huum Core Installation and Opperation Manual
